    42W Open Frame Power Supplies

    Ask Lasest Price
    Model Number : KS042
    Certification : US,CCC,UL,CUL,CCC,GS,CE,FCC,EMC,BEAB,SAA,KETI
    Delivery Time : 20days
    Payment Terms : T/T
    Supply Ability : 1000000 Piece/Pieces per Month
    • Product Details
    • Company Profile

    42W Open Frame Power Supplies

    42W Open Frame Power Supplies

    Key Features of KSO42-2
    ●En60950 ITE Safety Approvals
    ●Ambient Temp Range(0℃ to 60 )
    ●E.Cap life more than 6 years
    ●EMI level B Production connect GND
    ●Output:12V/3.15A, 4.6V/0.8A
    ●Reliability level of 44K hours MTBF @ 60℃


    Key Applications of KSO42-2
    It's suit for an extremely wide range of
    applications, including:
    ●General I.T.E Use
    ●Set-top-box
    ●ADSL
    ●Hard disk drive
    ●Audio & Video product
    ●Household appliance
    ●Washing machine

    Input

    ●Input Voltage: 180 to 264 VAC

    ●Frequency : 47-50/60-63hz

    ●Input Current : 1.0A (Max)

    ●Inrush Current : 45A Max 230VAC at max Load

    ●Leakage Current:0.25mA Max

    Output

    ●Over voltage protection

    ●Over current protection

    at 110-200% of lo and Auto-recovery

    ●Over temperature protection

    ●Electronic short circuit protection

    ●Operatingtemperature 0~40℃ Free convection

    ●Operating humidity 10-90% RH Non Condensing

    ●Sea level Non-operating temperature -20~80℃

    Safety standards

    ●Information technology equipment
    ●IEC/EN 60950-1, BS EN 60950-1:2006

    Certificates and approvals

    ●Applied with customer’s products

    EMI Emission

    ●Radiation Test&Conduction Test: EN 55022/FCC Part 15

    EMS immunity

    ●E S D Test:EN 61000-4-2
    ●R S Test:EN 61000-4-3
    ●E F T Test:EN 61000-4-4
    ●S u r g e Test:EN 61000-4-5
    ●C S Test:EN 61000-4-6
    ●D I P Test:EN 61000-4-11

    Mechanical SPEC

    Dimension L*W*H (mm) : 110x58x38mm

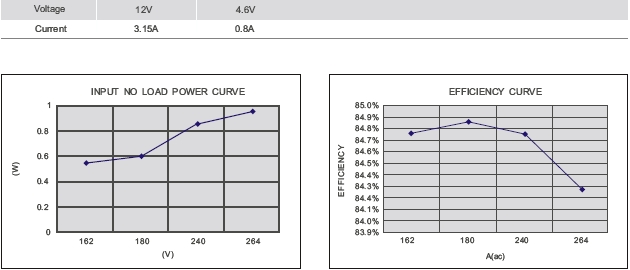

    Product tables for 42W
