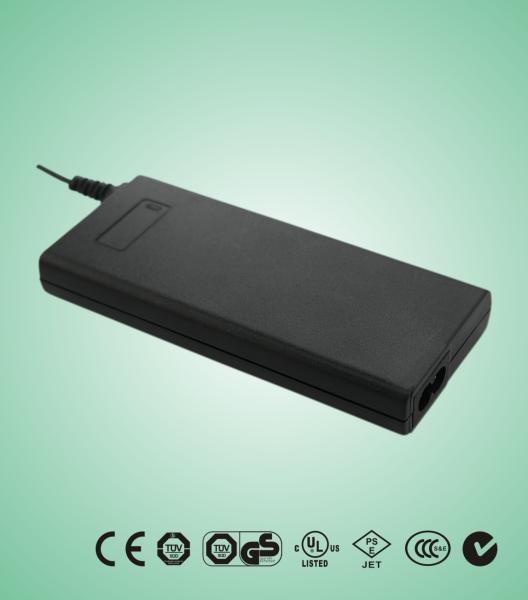

    external power suppliesKey Features of 45W KSUS045 series



    Key Features of KSUS045 series

    ●Light, extra slim, sleek, compact design

    ●Green power, full complies with CEC level V, MEPS V EUP2011

    ●High power density

    ●Extra safe design, have got their respective safety approvals

    ●Completed protect function


    Key Applications of KSUS045 series

    It’s suitable for an extremely wide range of applications, including:

    ●Mobile Devices

    ●Laptop

    ●Printer

    ●Pos

    ●Set-top-box

    ●ADSL

    ●Hard disk drive

    ●Audio & Video product

    ●Household appliance

    Input

    ●Input Voltage : 90 to 264 VAC

    ●Frequency : 47-50/60-63hz

    ●Input current : 1.2A(Max) 100 /240VAC

    ●Inrush current : 40AMax 120VAC at max Load

    80AMax 240VAC at max Load

    ●Leakage current:0.25 mA Max

    Output

    ●Over voltage protection

    ●Over current protection

    at 110-200% of lo and Auto-recovery

    ●Over temperature protection

    ●Electronic short circuit protection

    ●Operatingtemperature 0~40℃Free convection

    ●Operating humidity 10-90% RH Non Condensing

    ●Sea level Non-operating temperature -20~80℃

    Safety standards

    ●Information technology equipment

    ●IEC/EN 60950-1, UL 60950-1, CSA C22.2

    No. 60950-1-03, GB4943

    Certificates and approvals

    ●CB , GS , CE , TUV, UL , CCC , FCC, PSE, C-TICK

    EMI Emission

    ●Radiation Test&Conduction Test: EN 55022/FCC Part 15

    ●Harmonic Test : EN 61000-3-2

    ●Flicker Test : EN 61000-3-3

    EMS immunity

    ●ESD Test:EN 61000-4-2


    ●RS Test:EN 61000-4-3

    ●EFT Test:EN 61000-4-4

    ●Surge Test:EN 61000-4-5

    ●CS Test:EN 61000-4-6

    ●DIP Test:EN 61000-4-11
