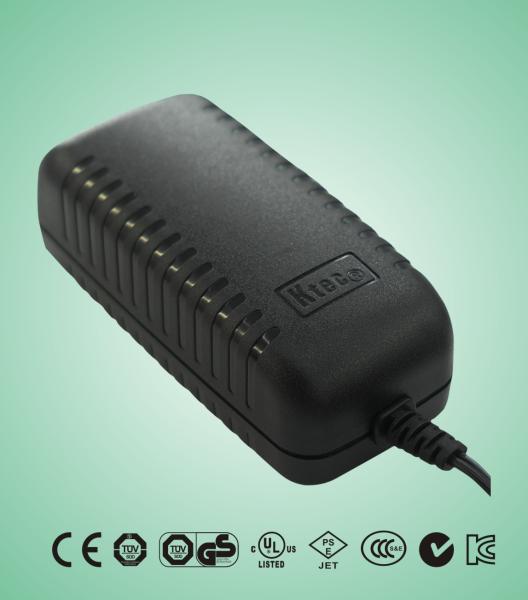

    external power suppliesKey Features of 25W KSAFE series

    Key Features of KSAFE series

    ●Light, extra slim, sleek, compact design

    ●High power density

    ●Extra safe design, have got their respective safety approvals

    ●Completed protect function


    Key Applications of KSAFE series

    It’s suitable for an extremely wide range of applications, including:

    ●Mobile Devices

    ●Printer

    ●Pos

    ●Set-top-box

    ●ADSL

    ●Hard disk drive

    ●Audio & video product

    ●Household appliance

    Input

    ●Input Voltage: 90 to 264 VAC

    ●Frequency : 47-50/60-63hz

    ●Input current : 0.6A(Max) 100 /240VAC

    ●Inrush current : 50 AMax 100VAC at max Load

    60A Max 240VAC at max Load

    ●Leakage current : 0.25 mA Max

    Output

    ●Over voltage protection

    ●Over current protection

    at 110-200% of lo and Auto-recovery

    ●Electronic short circuit protection

    ●Average efficlency Measured at 25℃

    ●Operatingtemperature 0~40℃Free convection

    ●Operating humidity 10-80% RH Non Condensing

    ●Sea level Non-operating temperature -20~80℃

    Safety standards

    ●Information technology equipment

    ●IEC/EN 60950-1, UL 60950, CSA C22.2

    No. 60950-1-03, GB4943, K60950

    Certificates and approvals

    ●CB , GS , CE , BEAB , UL , CCC , FCC, KC, PSE, C-TICK

    EMI Emission

    ●Radiation Test&Conduction Test: EN 55022/FCC Part 15

    ●Harmonic Test : EN 61000-3-2

    ●Flicker Test : EN 61000-3-3

    EMS immunity

    ●ESD Test:EN 61000-4-2


    ●RS Test:EN 61000-4-3

    ●EFT Test:EN 61000-4-4

    ●Surge Test:EN 61000-4-5

    ●CS Test:EN 61000-4-6

    ●DIP Test:EN 61000-4-11
