    Model Number : KSAFD
    Certification : US,CCC,UL,CUL,CCC,GS,CE,FCC,EMC,BEAB,SAA,KETI
    Delivery Time :
    Supply Ability : 300000PCS/M
    Price : Negotiable
    Payment Terms : T/T
    • Product Details
    • Company Profile

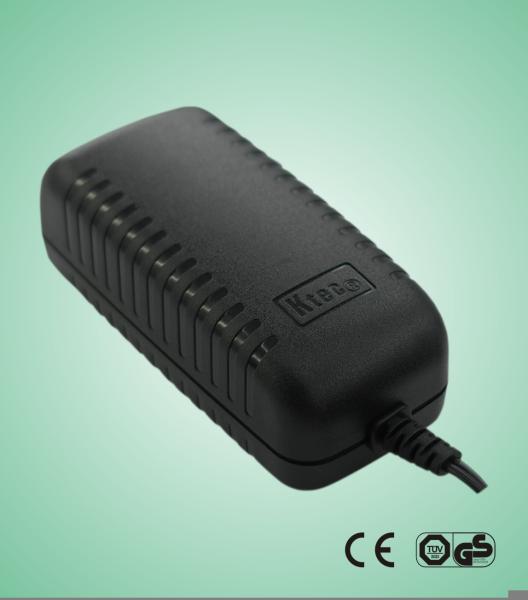

    external power suppliesKey Features of KSAFD series

    external power supplies

    Key Features of KSAFD series

    ●Light, extra slim, sleek, compact design

    ●Green power, full complies with CEC level V, MEPS V EUP2011

    ●High power density

    ●Extra safe design, have got their respective safety approvals

    ●Completed protect function


    Key Applications of KSAFD series

    It’s suitable for an extremely wide range of applications, including:

    ●Mobile Devices

    ●Pos

    ●Set-top-box

    ●ADSL

    ●Hard disk drive

    ●Audio & Video product

    ●Household appliance

    Input

    ●Input Voltage : 90 to 264 VAC

    ●Frequency : 47-50/60-63hz

    ●Input current : 0.4A(Max) 100 /240VAC
    ●Inrush current : 50 AMax 100VAC at max Load
    60AMax 240VAC at max Load
    ●Leakage current :0.25 mA Max
    Output

    ●Over voltage protection

    ●Over current protection

    at 110-200% of lo and Auto-recovery

    ●Electronic short circuit protection
    ●Operatingtemperature 0~40℃Free convection
    ●Operating humidity 10-80% RH Non Condensing
    ●Sea level Non-operating temperature -20~80℃
    Safety standards

    ●Information technology equipment

    ●IEC/EN 60950-1

    Certificates and approvals

    ●CB , GS , CE , PSE

    EMI Emission

    ●Radiation Test&Conduction Test :EN 55022/FCC Part 15

    ●Harmonic Test : EN 61000-3-2

    ●Flicker Test : EN 61000-3-3

    EMS immunity

    ●ESD Test:EN 61000-4-2

    ●RS Test:EN 61000-4-3

    ●EFT Test:EN 61000-4-4

    ●Surge Test:EN 61000-4-5

    ●CS Test:EN 61000-4-6

    ●DIP Test:EN 61000-4-11
