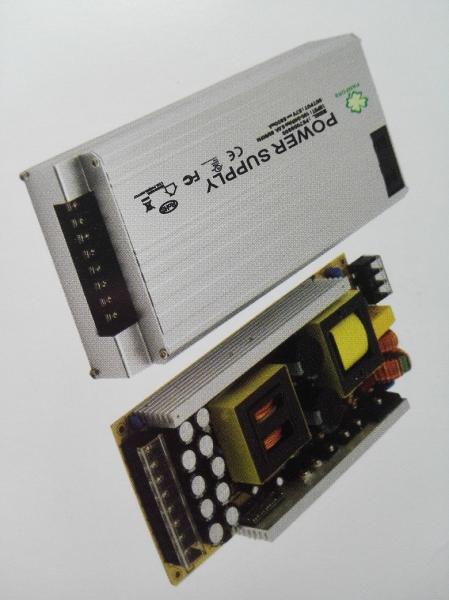

    Moistureproof 24v 500w Industrial Power Supplies Cooling By DC Fan

    Ask Lasest Price
    Model Number : 500W power supply
    Certification : UL FCC CB CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 10000pcs/month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    Moistureproof 24v 500w Industrial Power Supplies Cooling By DC Fan

    Moistureproof 24v 500w Industrial Power Supplies Cooling By DC Fan


    Features :


    Universal AC input:90-264VAC

    Leakage current < 1mA

    PFC built-in,PF>0.95

    LED indicator for power on

    Withsand 300VAC surge input for 10S

    cooling by DC fan

    Moistureproof processing

    Protection: short circuit/ over voltage/ over current / over temperature

    Compliance to UL FCC CB CE etc.safety standard

    Size:245*110*40mm


    Specifications :


    MODELPS 120D41700PS 240D20800PS 360D13900PS 480D10400
    OutputDC Voltage/DC12.0V24.0V36.0V48.0V
    Current Range0~41.7A0~20.8A0~13.9A0~10.4A
    Rated Power500W500W500W500W
    Ripple & Noise120mV240mV360mV480mV
    Voltage Tolerance±5%±5%±5%±5%
    InputVoltage Range90-264VAC90-264VAC90-264VAC90-264VAC
    Surge Current30A30A30A30A
    Efficiency90%91%91%91%
    PF Factor≧0.95≧0.95≧0.95≧0.95
    ProtectionOverload120%-150% rated output current.Auto recovery after fault condition is removed
    Short CircuitAuto recovery after fault condition is removed
    Over VoltageLatch off
    Over TemperatureRecoverable
    EnvitonmentWorking Temperature-20℃-70℃
    Storage Temperature-40℃-80℃
    Safety & EMCSafety StandardsUL60950/EN60950
    EMCEN55022 Class B, FCC part15 class B
    NoteAll parameters Not specially mentioned are measured at 220VAC input,rated load, 25℃ 70%RH ambient temperature

    Quality:


    The quality management is strict according to ISO9001 quality management system! All materials and production process completely compliance to Rohs Directive.
