120W Desttop Switching Adapter Power

    Buy cheap 120W Desttop Switching Adapter Power from wholesalers

    Buy cheap 120W Desttop Switching Adapter Power from wholesalers
    • Buy cheap 120W Desttop Switching Adapter Power from wholesalers

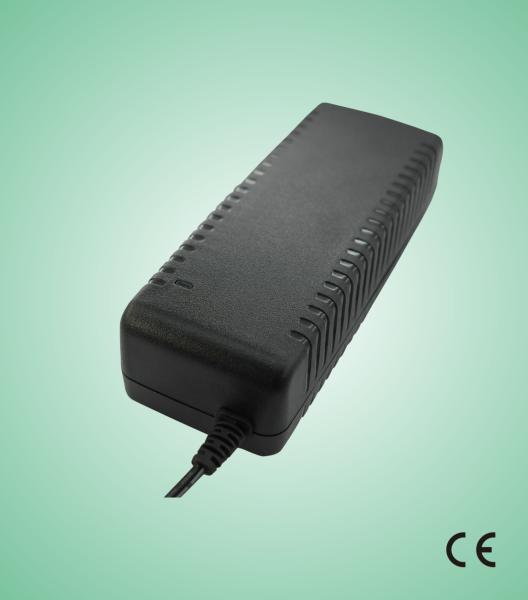

    120W Desttop Switching Adapter Power

    Ask Lasest Price
    Certification : UL,CCC,GS,TUV,C-Tick
    Payment Terms : T/T
    Supply Ability : 300000 Piece/Pieces per Day
    Model Number : KSAFN3000400T1M3
    Price : Negotiable
    Delivery Time : 35days
    • Product Details
    • Company Profile

    120W Desttop Switching Adapter Power


    120W Desttop Switching Adapter Power

    Key Features of KSAFN3000400T1M3

    ●Light, extra slim, sleek, compact design

    ●High power density

    ●Extra safe design, have got their respective safety approvals

    ●Completed protect function


    Key Applications of KSAFN3000400T1M3

    It’s suitable for an extremely wide range of applications, including:

    ●Printer

    ●Massage armchair

    ●Set-top-box

    ●ADSL

    ●Hard disk drive

    ●Audio & Video product

    ●Household appliance

    Input

    ●Input Voltage:90 to 264 VAC

    ●Frequency : 47-50/60-63hz

    ●Input current :1.2A(Max)

    ●Inrush current :100AMax 120VAC at max Load

    100AMax 240VAC at max Load

    ●Leakage current :0.25 mA Max

    Output

    ●Over voltage protection

    ●Over current protection

    at 300% lo and.automatic-recovery

    ●Over temperature protection

    ●Electronic short circuit protection

    ●Average efficiency 80% Measured at 25℃

    ●Operatingtemperature 0~40℃Free convection

    ●Operating humidity 10-90% RH Non Condensing

    ●Sea level Non-operating temperature -20~80℃

    Safety standards

    ●Information technology equipment

    ●EN 60335

    Certificates and approvals

    ●CE

    EMI Emission

    ●Radiation Test&Conduction Test: EN 55022/FCC Part 15

    ●Harmonic Test : EN 61000-3-2

    ●Flicker Test : EN 61000-3-3

    EMS immunity

    ●ESD Test:EN 61000-4-2


    ●RS Test:EN 61000-4-3

    ●EFT Test:EN 61000-4-4

    ●Surge Test:EN 61000-4-5

    ●CS Test:EN 61000-4-6

    ●DIP Test:EN 61000-4-11

    Mechanical SPEC

    Dimension L*W*H (mm) : 173*64*42

    Product tables for 120W
