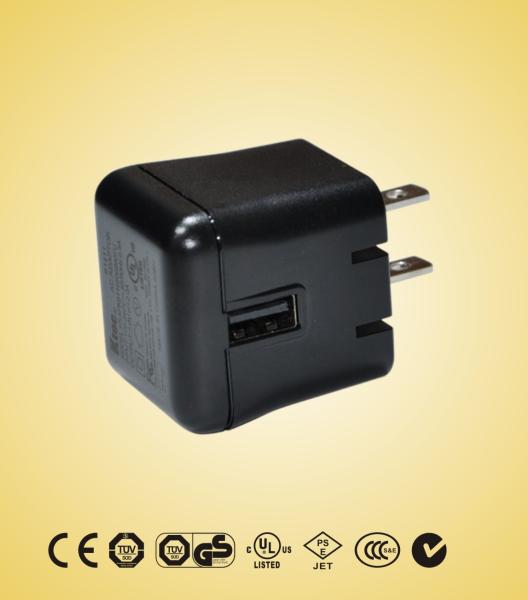

    11W USB Charger

    Ask Lasest Price
    Model Number : KSUFB
    Certification : GS,CE,BEAB,C-TICK,UL1310,CCC
    Delivery Time : 20days
    Payment Terms : T/T
    Supply Ability : Shenzhen HongKong
    Price : Negotiable
    • Product Details
    • Company Profile

    11W USB Charger

    11W USB Charger

    Key Features of KSUFB series

    ●Green power, full complies with CEC level V, MEPS V EUP2011

    ●Extra safe design, have got their respective safety approvals

    ●Completed protect function


    Key Applications of KSUFB series

    It’s suitable for an extremely wide range of applications, including:

    ●Mobile Devices

    ●Excellent Flat Computer Charger with extra safe designn

    ●Set-top-box

    ●ADSL

    ●Audio & Video product

    ●Household appliance

    ●Charger

    ●Panel pad

    Input

    ●Input Voltage: 100 to 240 VAC

    ●Frequency : 47-50/60-63hz

    ●Input current : 0.5A(Max) 100 /240VAC

    ●Inrush current : 60AMax. at max. Load

    ●Leakage current : 0.25 mA Max

    Output

    ●Output voltage:5.0V, current: 10mA-2100mA

    ●Green power, full complies with CEC level V, MEPS V, EUP2

    ●With OVP protection

    ●With OCP protection at 110-200% of Io and auto- recovery

    ●Average efficiency 78% Measured at 25℃

    ●Operating temperature: 0~40℃Free convection

    ●Operating humidity:10-90% RH Non Condensing

    ●Sea level Non-operating temperature: -20~80℃

    Safety standards

    ●Information technology equipment

    ●IEC/EN 60950-1, UL 60950-1, CSA C22.2

    No. 60950-1-03, GB4943

    Certificates and approvals

    ●CB , GS , CE , TUV, UL , CCC , FCC, PSE, C-TICK

    EMI Emission

    ●Radiation Test&Conduction Test: EN 55022/FCC Part 15

    ●Harmonic Test : EN 61000-3-2

    ●Flicker Test : EN 61000-3-3

    EMS immunity

    ●ESD Test:EN 61000-4-2


    ●RS Test:EN 61000-4-3

    ●EFT Test:EN 61000-4-4

    ●Surge Test:EN 61000-4-5

    ●CS Test:EN 61000-4-6

    ●DIP Test:EN 61000-4-11

    Mechanical SPEC

    Dimension L*W*H (mm) : 38.5*38*39.5MM

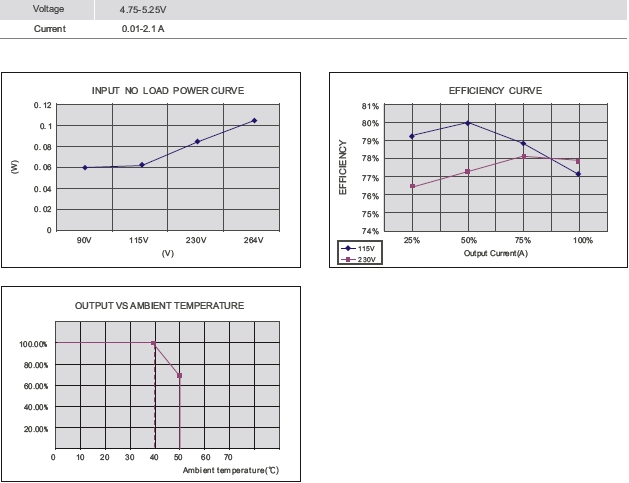

    Product tables for 11W

    Packing & shipping

    Down Load
