Wide Range Switching Power Adapters 6W KSAB Series , Over Voltage Protection

    Buy cheap Wide Range Switching Power Adapters 6W KSAB Series , Over Voltage Protection from wholesalers

    Buy cheap Wide Range Switching Power Adapters 6W KSAB Series , Over Voltage Protection from wholesalers
    • Buy cheap Wide Range Switching Power Adapters 6W KSAB Series , Over Voltage Protection from wholesalers

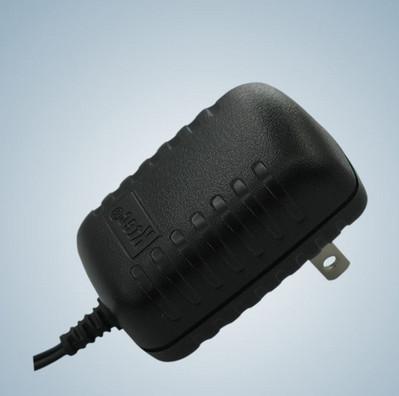

    Wide Range Switching Power Adapters 6W KSAB Series , Over Voltage Protection

    Ask Lasest Price
    Certification : US,CCC,UL,CUL,CCC,GS,CE,FCC,EMC,BEAB,SAA,KETI
    Model Number : 6W KSAB Series
    Price : Negotiable
    Delivery Time : 30 Days
    Payment Terms : T/T, Negotiable for OEM
    Supply Ability : 1M/Month
    • Product Details
    • Company Profile

    Wide Range Switching Power Adapters 6W KSAB Series , Over Voltage Protection

    Wide Range Switching Power Adapters 6W KSAB Series , Over Voltage Protection


    Brand Name:•ktec
    Input:•Input Voltage: 90 to 264 VAC
    •Frequency : 47-50/60-63HZ
    •Input Current : 0.6A (Max)
    •Inrush Current : 50A Max 100VAC at max Load
    60A Max 240VAC at max Load
    •Leakage Current: 0.25mA Max
    Output:•Over voltage protection
    •Over current protection
    •at 110-200% of lo and Auto-recovery
    •Electronic short circuit protection
    •Operating temperature 0~40℃ Free convection
    •Operating humidity 10-90% RH Non Condensing
    •Sea level Non-operating temperature -20~ 80℃
    Safety standards:•Information technology equipment
    •IEC/EN 60950-1,BS EN60950-1:2006,
    •EN60065,GB8898,K60950,UL60950 CSA C22.2
    •NO.60950-1-03,GB4943
    Certificates and approvals:•CB , GS , CE , TUV , CCC , FCC,KC,PSE
    EMI Emission:•Radiation Test&Conduction Test:EN 55022/FCC Part 15
    •Harmonic Test:EN 61000-3-2
    EMS immunity:•ESD Test:EN 61000-4-2
    •RS Test:EN 61000-4-3
    •EFT Test:EN 61000-4-4
    •Surge Test:EN 61000-4-5
    •CS Test:EN 61000-4-6
    •DIP Test:EN 61000-4-11
    Key Applications:Key features of KSAB series
    •Green power, full complies with CEC level V, MEPS V EUP2011
    •EN60950/EN60065 AV ITE Safety Approvals
    •Ambient Temp Range(0℃ to 40℃)
    •Fixed frequency switching is mandatory
    •ESD:air discharging ±8KV, contact discharging ±4KV
    •Reliability level of MTBF 50K hours @25℃

    Key Applicationsof KSAB series
    •It’s suitable for an extremely wide range of applications including:
    •General I.T.E Use
    •Set-top-box
    •Audio&video product
    •ADSL
    •Mobile Devices
    •Household appliance
    Payment Details:•Payment Terms: T/T,negotiable for OEMs
    Main Export Markets:• Eastern Europe
    • North America
    • Mid East/Africa
    • Central/South America
    • Asia
    • Western Europe
    • Australasia

    Easy to use , Good quality , competitive price , experienced manufacture , 24 hours on line service , we are awaiting for your instruction , Just call us for more details!
