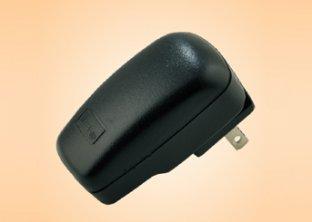

    110v ,130v, 240v AC 50 / 60 HZ 2 PIN Switching Power Adapter 15W, Over Current Protection

    Ask Lasest Price
    Model Number : KSLFD
    Certification : UL,GS,CE,BEAB,3C
    Payment Terms : T/T
    Supply Ability : 1000000 Piece/Pieces per Month
    Price : Negotiable
    • Product Details
    • Company Profile

    110v ,130v, 240v AC 50 / 60 HZ 2 PIN Switching Power Adapter 15W, Over Current Protection


    110v ,130v, 240v AC 50 / 60 HZ 2 PIN Switching Power Adapter 15W, Over Current Protection

    Key Features of KSLFD series

    ●Light, extra slim, sleek, compact design

    ●Green power, full complies with CEC level V, MEPS IV EUP2011

    ●High power density

    ●Extra safe design, have got their respective safety approvals

    ●Completed protect function


    Key Applications of KSLFD series

    It’s suitable for an extremely wide range of applications, including:

    ●Mobile Devices

    ●Tatop

    ●Printer

    ●Pos

    ●Set-top-box

    ●ADSL

    ●Hard disk drive

    ●Audio & Video product

    ●Household appliance

    Input

    ●Input Voltage: 90 to 264 VAC

    ●Frequency : 47-50/60-63hz

    ●Input current : 0.4A(Max) 120 /240VAC

    ●Inrush current : 30AMax 120VAC at max Load
    60AMax 240VAC at max Load
    ●Leakage current :0.25 mA Max
    Output

    ●Over voltage protection

    ●Over current protection

    at 110-200% of lo and Auto-recovery

    ●Electronic short circuit protection

    ●Operatingtemperature 0~40℃Free convection

    ●Operating humidity 10-80% RH Non Condensing

    ●Sea level Non-operating temperature -20~80℃

    Safety standards

    ●Information technology equipment

    ●IEC/EN 60950-1, UL 60950-1, CSA C22.2

    No. 60950-1-03, GB4943

    Certificates and approvals

    ●CB , GS , CE , TUV, UL , CCC , FCC, C-TICK, PSE

    EMI Emission

    ●Radiation Test&Conduction Test: EN 55022/FCC Part 15

    ●Harmonic Test:EN 61000-3-2

    ●Flicker Test:EN 61000-3-3


    EMS immunity

    ● ESD Test:EN 61000-4-2

    ●RS Test:EN 61000-4-3

    ●EFT Test:EN 61000-4-4

    ●Surge Test:EN 61000-4-5

    ●CS Test:EN 61000-4-6

    ●DIP Test:EN 61000-4-11
